Low-voltage aluminum busway

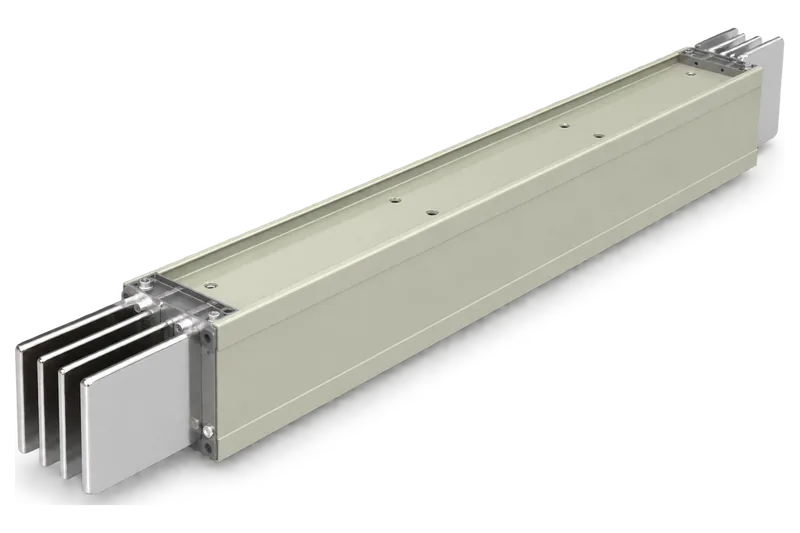

LVA Busway
Aluminum busway for low-voltage feeders and plug-in distribution in commercial, industrial and high-rise buildings.
- Rated current
- 250 – 5000 A
- Conductor
- Aluminum
- Protection
- IP54 – IP66
- Plug-in outlets
- Every 570 mm
Most widely usedOverview
Low-voltage aluminum busway
LVA is our most widely used low-voltage system: an aluminum busway for main feeders, risers and plug-in distribution in commercial, residential and industrial buildings. Pre-sealed plug-in outlets let you add loads as the building grows.
Best for: Default choice for low-voltage feeders and risers
Key features
Sandwich construction
Flat-laid conductors in a 125 mm wide housing reduce heat build-up and save space.
Dual-layer housing
Maximizes heat dissipation and supports up to IP66 protection.
Plug-in flexibility
Pre-sealed, dust-proof outlets ready for future load expansions.
Halogen-free insulation
Class H epoxy or polyester resin: flame-retardant and mechanically robust.
Bridge-type joint
±8 mm flexibility, Belleville spring washers and phase-error-proof assembly.
Compact tap-off boxes
Up to 400 A with breakers or fuses and optional locks. SCADA-ready temperature monitoring available.
Technical specifications
LVA Busway
- Conductor
- Aluminum
- Rated current
- 250 – 5000 A
- Rated operating voltage
- Up to 690 V
- Rated insulation voltage
- Up to 1000 V
- Frequency
- 50 / 60 Hz
- Protection
- IP54 · IP65 · IP66 (by configuration)
- Systems
- 3P3W · 3P4W · 3P5W
- Neutral
- 0 % · 100 % (standard) · 200 %
- Grounding
- Via housing or internal bar
- Short-circuit performance
- Certified under IEC 61439-6
- Housing width
- 125 mm
- Standard length
- 3000 mm (minimum 720 mm)
- Plug-in outlet spacing
- 570 mm between centers
Source: ElectriDistro LVA technical manual ED-MT-LVA-ES, Rev. 07. Values as published in the manufacturer's documentation. Your quotation confirms the exact configuration.
Typical applications
- Commercial and office buildings
- Residential high-rises (10+ floors)
- Data centers (main feeders)
- Industrial plants
- Rail transit and infrastructure
