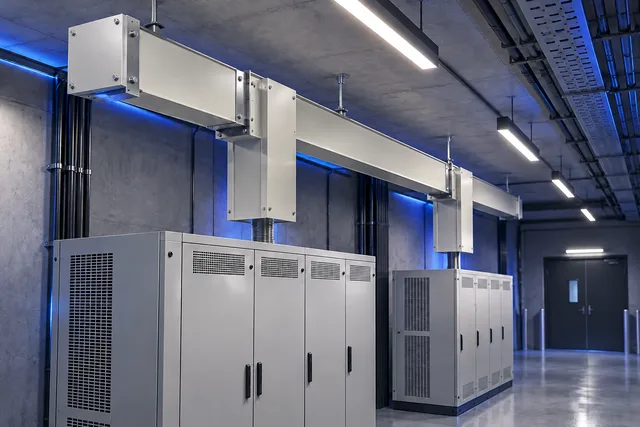

Illustrative render
Why busway
Busway: the smarter alternative to traditional cabling
One prefabricated, enclosed system replaces runs of parallel cable.
It goes up in sections, not cable pulls.
And it grows with your building.
Comparison
Traditional cabling vs. busway
Busway isn't the answer for every circuit. Our team will tell you where cable is the better call.

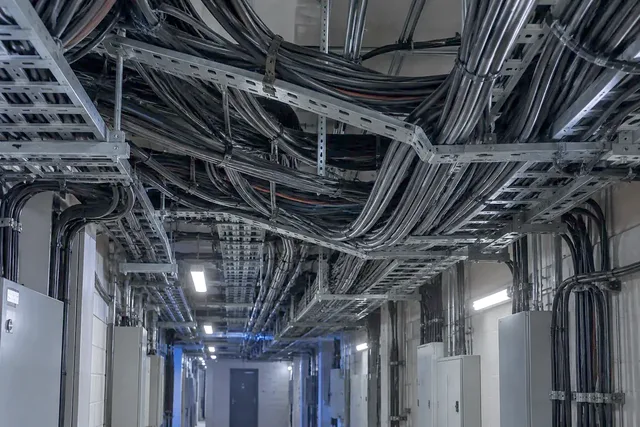

Legacy wiring systems- Many parallel conductors to pull and terminate
- Large trays and more ceiling space
- New loads mean new circuits
- Changes require rework on site
Busway system- Prefabricated lengths, bolted joints
- Compact enclosed run

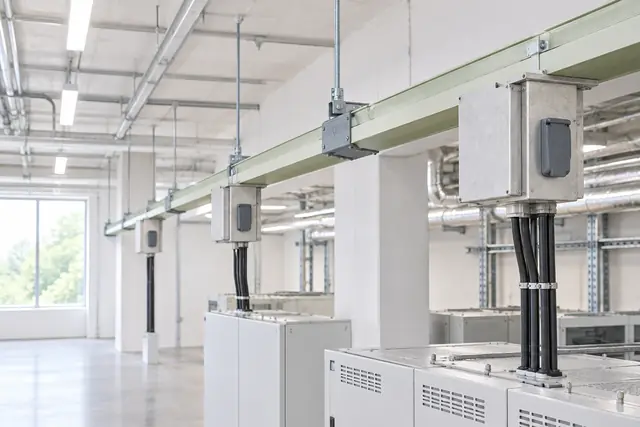

- Plug-in points along the route
- Re-route or extend with standard parts
Design, build, expand
How a busway project is designed, built and expanded
01Design flexibility

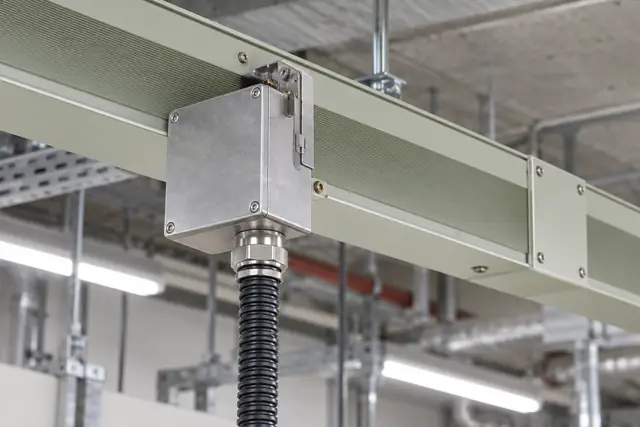

Plug-in points along the run put loads where the layout needs them.
02Installation logistics

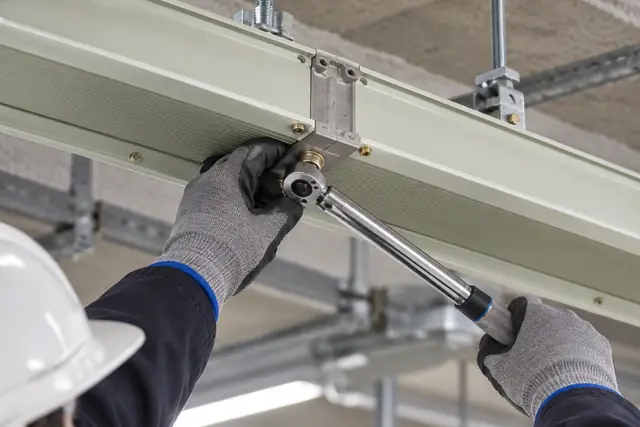

Prefabricated sections joined and tightened on site.
03Expansion

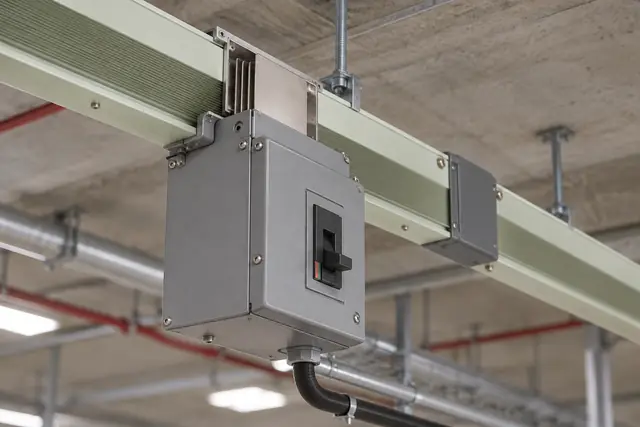

Add a plug-in box when the load grows, no new feeder.
04Space and access

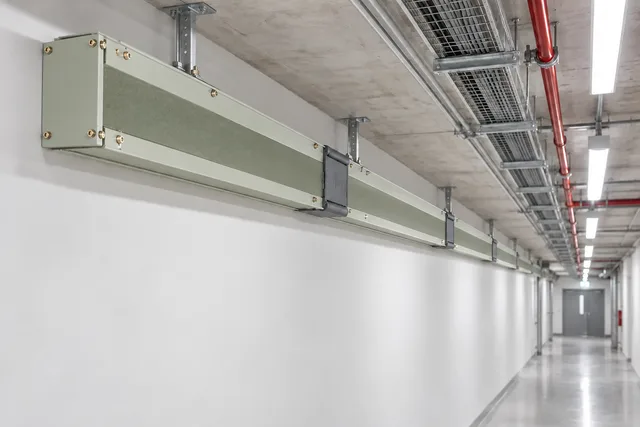

A compact run close to the ceiling frees the space below.
Applications
Busway is in every construction and infrastructure project
Typical recommendations. Final selection depends on each project's specifications.
| System | Applications |
|---|---|
| LVA Busway | High-rise buildings · Corporate buildings · Shopping centers · Hospitals · Manufacturing plants |
| GM Busway | Hydroelectric plants · Chemical industry · Oil fields · Canals and locks · Ports and naval industry |
| Data Pro Busway | Data centers · Specialized laboratories · Telecommunications centers |
| GM-Z MV Busway | Hydroelectric generation · Nuclear power plants |
Total installed cost
What does power distribution really cost?
The conductor price is only part of it. Compare the total installed cost.
Cable and trays
Busway
Materials
Conductor, lugs and terminations
Sections and fittings
Parallel cables
Several cables per phase at high currents
One enclosed run
Trays and conduit
Large trays or conduit banks
Not required
Supports
Heavy, closely spaced supports
Hangers along the run
Labor and time
Pulling, dressing and terminating on site
Hang, join and tighten
Space
More ceiling and riser space
Compact run
Future expansion
New circuits from the switchboard
Add a plug-in box
Maintenance
Many terminations to check
Accessible joints
At high currents and on runs with many parallel conductors, busway is often more competitive.
On small circuits, cable can be the better choice.
We compare both options for your project.
Intelligence & operation
Measure, monitor and control

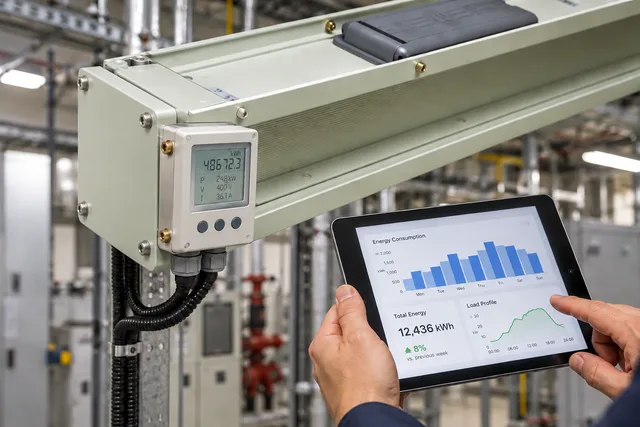

With compatible accessories, plug-in points can measure and report their consumption. Available functions depend on the product line and configuration.
- 01Busway
- 02Plug-in box with meter
- 03GPRS or PLC communication
- 04Monitoring platform
- Consumption visibilitySee energy use by floor, area or load.
- Load identificationFind the loads that drive demand.
- Capacity planningKnow how much room each run has left.
- Remote operationRemote disconnection and reconnection.
Defined per project with compatible accessories; not every function applies to every line. Useful in high-rise residential and buildings with heavy HVAC loads.
Why ElectriDistro
Why our busway?
Our team has worked with many manufacturers and busway lines.
We chose this line for its quality, functionality, competitive price and technical support.
Quality product
Manufactured to international standards, with recognized certifications.
Competitive price
High value for the specification you need.
Busway specialists
One product, known in depth.
Technical support
From selection and specification to your project.
Low-voltage busway: equivalent lines
Same factory, different label. Wetown manufactures busway for ABB in its own complex in China. In comparable configurations it is essentially the same busway: ABB's carries ABB branding and labels, ours carries Wetown's. That is why we can offer a more competitive price.
$$

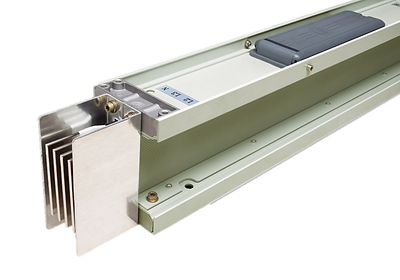

LVA (Wetown)Aluminum · 250 – 5000 A · IP54 – IP66
ABBWavePro-A
$$$Aluminum · Up to 5000 A · Per configuration
LS ElectricEx-Way
$$Copper / aluminum · 630 – 6000 A · IP54
EatonPow-R-Way III
$$Copper / aluminum · 225 – 5000 A · Indoor / outdoor (NEMA 3R)
LegrandZucchini SCP
$$$Aluminum / copper · 630 – 6300 A · IP55
Schneider ElectricI-LINE II
$$Copper · 630 – 6300 A · IP40 – IP66
SiemensSIVACON 8PS LI
$$Aluminum / copper · 800 – 6300 A · IP55 – IP66
Indicative comparison based on each manufacturer's public catalogs. The relative price level reflects our experience on projects across the Americas and is not a quote. Trademarks belong to their respective owners.
Have a project? Tell us what you need.
Send drawings, a spec or just the basics.
