Track busway for white space
Data Pro Busway
Overhead track busway for data halls and white space: add or move rack feeds without rewiring.
- Rated current
- 160 – 1000 A
- Tap-off breakers
- 16 – 125 A
- Protection
- IP42
- Monitoring
- Optional module
Built for data centersOverview
Track busway for white space

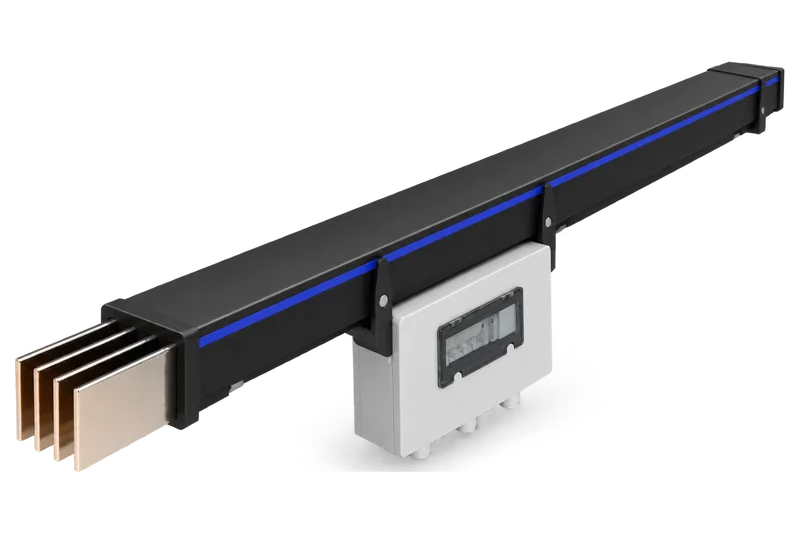

Data Pro (Wetown Pro S) is an overhead track busway for data halls, light industrial plants and medical buildings. Slide-rail tap-off units plug in at any point along a straight run, so you can add or move rack feeds without rewiring.
Best for: Rack and machine feeds that change often
Key features
Slide-rail tap-off units
Hang, slide and plug in at any position. Locks automatically, no tools needed.
Elastic contact joint
Patented joint with balanced contact pressure: no fastening bolts to loosen.
Thermal design
Low temperature rise across the full range, with an enlarged heat-dissipation area.
Safe structure
PE pin connects first, and the design keeps phases apart to rule out interphase short circuits.
Modular parts
Standard parts, universal tap-off units and expandable PE (up to 100 %).
Optional monitoring
Telemetry, remote signaling and remote control, with cloud and app access.
Technical specifications
Data Pro Busway
- Rated current
- 160 – 1000 A
- Tap-off breakers
- 16 – 125 A
- Wire system
- 3L + N + PE
- Conductor
- T2 electrolytic copper, silver-plated
- Enclosure
- Aluminum-magnesium-silicon alloy
- Protection
- IP42 (busway and tap-off)
- Tap-off outputs
- Single · 3-circuit · 6-circuit
- Ambient temperature
- −5 to +50 °C
- Altitude
- ≤ 2000 m
- Installation
- Hoisted, surface or in under-floor trays
Source: Wetown Electric, Pro S Track Busway (2023). Values as published in the manufacturer's documentation. Your quotation confirms the exact configuration.
Typical applications
- Data centers and white space
- Light industrial plants
- Medical buildings
- Labs and tech facilities
Documentation
Manufactured by Wetown Electric to international standards. View certifications
